API standards ceramic cyliner zirconia tube of F1300/1600 mud pump

FOB Reference Price:Get Latest Price
1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
CNC Machining or Not:
Not CNC Machining
Type:
Drilling
Material Capabilities:
45# forging steel
Micro Machining or Not:
Micro Machining
Place of Origin:
Hebei, China (Mainland)
Model Number:
FB-1300
Brand Name:
DONGLI
mud pump fluid end expendables:
Dongli could supply Zirconia and Alumina inner sleeves.
Supply Ability
Supply Ability:
10000 Set/Sets per Month
Packaging & Delivery
Packaging Details
standars export packages,or at customers option.
Port
xingang,China
Lead Time :
within 1 days after receipt of the orders

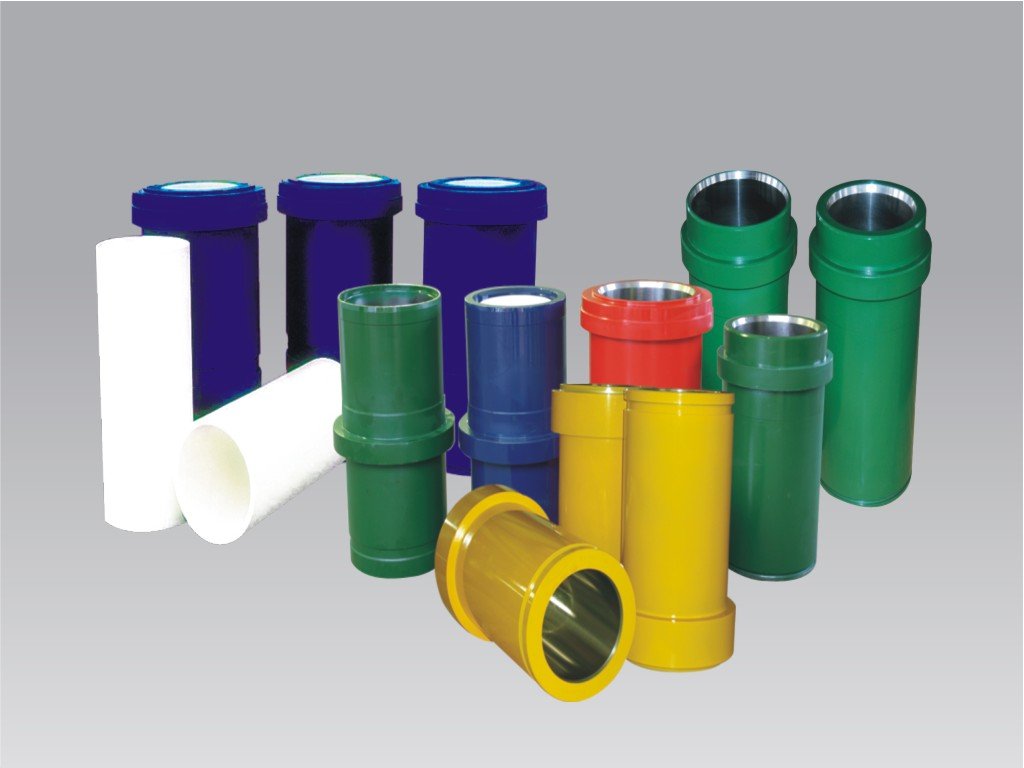

API ceramic liners for mud pump

   Ceramic liners have better performance than metal liners in wearproof, corrosion resistant and service life. The material of ceramic liner is the most advanced international increased flexible Zirconium. As per this materal, the tenacity breakpoint is K10--15MPa  ( 10 times of the ordinary material), bending strength is σ600--800Mpa with Weber coefficient is m18 and modulus of elestity of E200Gpa. These new ceramic liners are made for superior performance under tough corrosive and abrasive conditions. The HRC is more than 60°. Each liner is machined to close tolerances to assure ease of installation and long liner life.



Dongli could also supply the belowed types of mud pump liners:



EMSCO:F-1000,F-1300,FA-1300,F1600,FA-1600,FB-1300,FB-1600,F-350,F-500,F-650,F-800,F-1000,DB-550;D-300,D-375,D-700.
IDECO:T-500,T-800,T-1000,T-1300,T-1600.
GARNDER-DENVER:PZ-7,PZ-8,PZ-9,PZ-10,PZ-11,PZ-L;PA-8,PAH,FY-FXD,FO-FXO,FD-FXX,FG-GXG.
NATIONAL OILWELL:10-P-130,12-P-160,8-P-80,7-P-50,K-700,K-700A,K-500,K-500A,K-380,A1700-PT,A1400-PT,A1100-PT,220P,218P,A850-PT,A350-PT,JWS
ELLIS WILLIAMS :W-440-LP,WILSON600,PPWH.

OMEGA:OPI 1000
